SLMi823x系列

双通道死区可编程的 40V, 1A/4A 隔离驱动器

SLMi8233/4/5-AQ系列 | 双通道死区可编程的 40V, 1A/4A 隔离驱动器 SLMi823x系列 | 双通道死区可编程的 40V, 1A/4A 隔离驱动器 SLMi8233/4/5H-AQ系列 | 双通道死区可编程的 40V, 1A/4A 隔离驱动器

产品概述

产品特性

安规认证

典型应用图

Overview

SLMi823x系列是具有不同配置的双通道死区可编程的隔离驱动器。SLMi8230/3配置为双输入，高/低半桥驱动器，SLMi8231/4配置为单输入，高/低半桥驱动器而SLMi8232/5配置为双输入，双输出驱动器。另外，SLMi8230/1/2 的峰值输出电流为 1.0A，SLMi8233/4/5 的峰值输出电流为 4.0A。并且 SLMi8230/1/3/4 提供可编程死区 (DT) 功能。将 DIS 引脚拉高会同时关闭两个输出，并允许在开路或拉低时正常运行。

所有输出驱动器的 VDDA/B 电源电压最高到40V。3V 至 18V 的 VDDI 宽范围输入，使驱动器适合模拟和数字控制器接口，并且所有电源电压引脚都有欠压锁定 (UVLO) 保护功能。

SLMi823x提供SOP16W 的封装，可提供 5kVRMS 隔离耐压。

超高CMTI、低传输延迟、小封装、灵活的配置使得SLMi823x非常适合作为MOSFET/IGBT、SiC和GaN场效应管的隔离驱动。

Product Characteristics

1.0A 或 4.0A 峰值输出电流

40ns (典型) 传输延迟

18ns (典型) 脉宽失真

18ns (典型) 器件间延时匹配

100kV/us (最小) 共模瞬态抗扰度 (CMTI)

输出驱动器电源电压范围最高到40V

1500V 两通道间的功能绝缘

5V 输入反向耐压能力

工作结温范围, TJ: –40°C ~ +150°C

Safety Certification

SOP16W: 符合UL 1577 1分钟的5kVRMS

符合GB4943.1-2022的CQC认证

符合 DIN V VDE 0884-11(计划中)

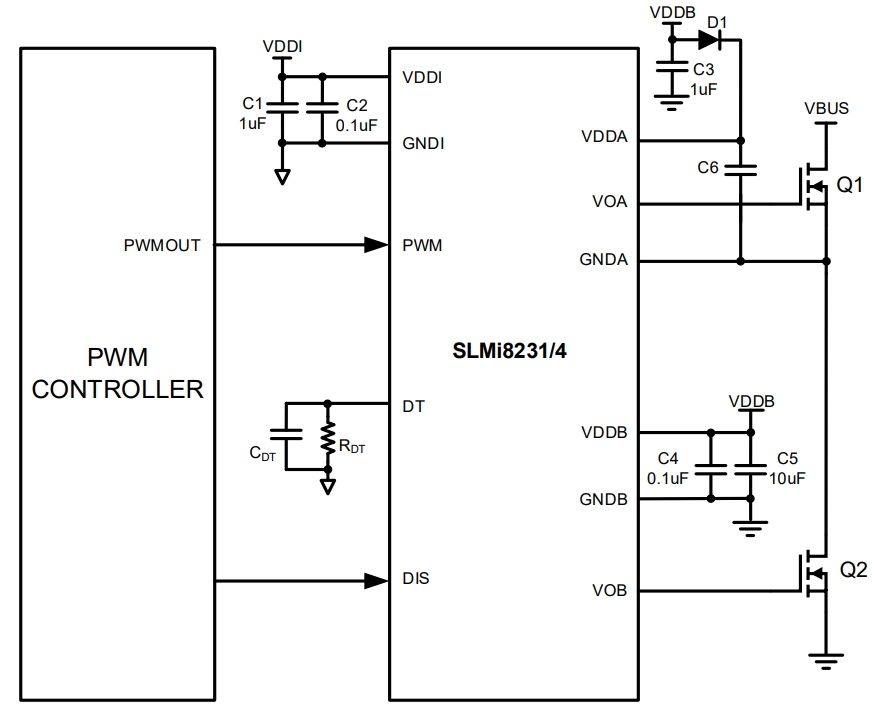

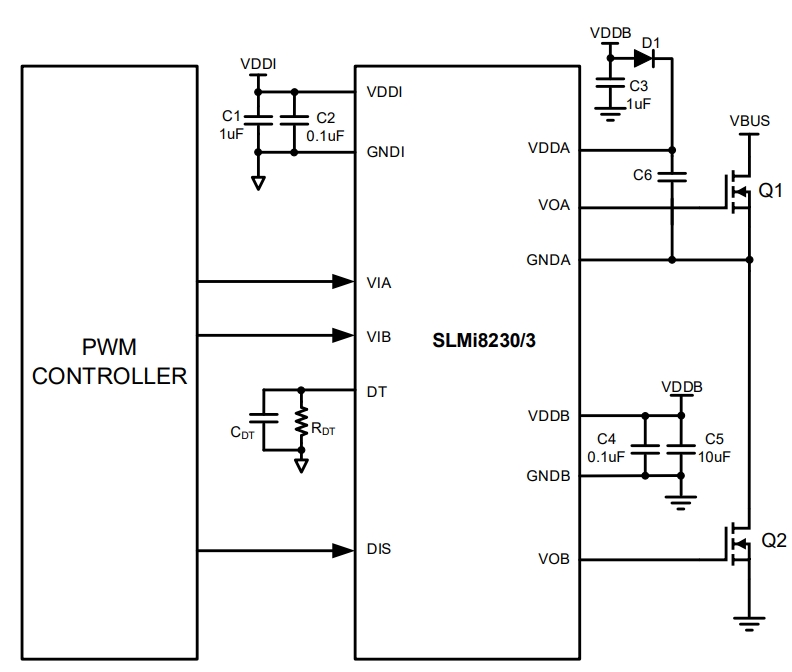

Typical Application

Product Parameters Table

Expand Filter

Part Number	Power Switch	IOH/IOL (A)	Output VCC/VDD (V)	Input VCC (V)	Prop. Delay（ns）	Input Config	Program Deadtime	Overlap Protection	CMTI (kV/μs) Min.	VISO(Vrms)	Operating Temp （℃）	Package Group	Packing/QTY
SLMi8230BDCG-DG	IGBT/MOSFET/SiC/GaN	1.0/1.5	9-40	3-18	40	VIA/VIB	Y	Y	100	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi8230DDCG-DG	IGBT/MOSFET/SiC/GaN	1.0/1.5	13.5-40	3-18	40	VIA/VIB	Y	Y	100	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi8231BDCG-DG	IGBT/MOSFET/SiC/GaN	1.0/1.5	9-40	3-18	40	PWM	Y	Y	100	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi8231DDCG-DG	IGBT/MOSFET/SiC/GaN	1.0/1.5	13.5-40	3-18	40	PWM	Y	Y	100	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi8232BDCG-DG	IGBT/MOSFET/SiC/GaN	1.0/1.5	9-40	3-18	40	VIA/VIB	-	-	100	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi8232DDCG-DG	IGBT/MOSFET/SiC/GaN	1.0/1.5	13.5-40	3-18	40	VIA/VIB	-	-	100	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi8233BDCG-DG	IGBT/MOSFET/SiC/GaN	4.0/7.0	9-40	3-18	40	VIA/VIB	Y	Y	100	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi8233DDCG-DG	IGBT/MOSFET/SiC/GaN	4.0/7.0	13.5-40	3-18	40	VIA/VIB	Y	Y	100	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi8234BDCG-DG	IGBT/MOSFET/SiC/GaN	4.0/7.0	9-40	3-18	40	PWM	Y	Y	100	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi8234DDCG-DG	IGBT/MOSFET/SiC/GaN	4.0/7.0	13.5-40	3-18	40	PWM	Y	Y	100	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi8235BDCG-DG	IGBT/MOSFET/SiC/GaN	4.0/7.0	9-40	3-18	40	VIA/VIB	-	-	100	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi8235DDCG-DG	IGBT/MOSFET/SiC/GaN	4.0/7.0	13.5-40	3-18	40	VIA/VIB	-	-	100	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi8233HBDCP-DG	IGBT/MOSFET/SiC/GaN	4.0/7.0	9-40	3-18	40	VIA/VIB	Y	Y	100	5000	–40 ~ 125	SOP14W	Reel/1500
SLMi8233HDDCP-DG	IGBT/MOSFET/SiC/GaN	4.0/7.0	13.5-40	3-18	40	VIA/VIB	Y	Y	100	5000	–40 ~ 125	SOP14W	Reel/1500
SLMi8234HBDCP-DG	IGBT/MOSFET/SiC/GaN	4.0/7.0	9-40	3-18	40	PWM	Y	Y	100	5000	–40 ~ 125	SOP14W	Reel/1500
SLMi8234HDDCP-DG	IGBT/MOSFET/SiC/GaN	4.0/7.0	13.5-40	3-18	40	PWM	Y	Y	100	5000	–40 ~ 125	SOP14W	Reel/1500
SLMi8235HBDCP-DG	IGBT/MOSFET/SiC/GaN	4.0/7.0	9-40	3-18	40	VIA/VIB	-	-	100	5000	–40 ~ 125	SOP14W	Reel/1500
SLMi8235HDDCP-DG	IGBT/MOSFET/SiC/GaN	4.0/7.0	13.5-40	3-18	40	VIA/VIB	-	-	100	5000	–40 ~ 125	SOP14W	Reel/1500
SLMi8233HBDCG-DG	IGBT/MOSFET/SiC/GaN	4.0/7.0	9-40	3-18	40	VIA/VIB	Y	Y	100	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi8233HDDCG-DG	IGBT/MOSFET/SiC/GaN	4.0/7.0	13.5-40	3-18	40	VIA/VIB	Y	Y	100	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi8234HBDCG-DG	IGBT/MOSFET/SiC/GaN	4.0/7.0	9-40	3-18	40	PWM	Y	Y	100	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi8234HDDCG-DG	IGBT/MOSFET/SiC/GaN	4.0/7.0	13.5-40	3-18	40	PWM	Y	Y	100	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi8235HBDCG-DG	IGBT/MOSFET/SiC/GaN	4.0/7.0	9-40	3-18	40	VIA/VIB	-	-	100	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi8235HDDCG-DG	IGBT/MOSFET/SiC/GaN	4.0/7.0	13.5-40	3-18	40	VIA/VIB	-	-	100	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi8230BDCG-AQ	IGBT/MOSFET/SiC/GaN	1.0/1.5	9-40	3-18	40	VIA/VIB	Y	Y	100	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi8230DDCG-AQ	IGBT/MOSFET/SiC/GaN	1.0/1.5	13.5-40	3-18	40	VIA/VIB	Y	Y	100	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi8231BDCG-AQ	IGBT/MOSFET/SiC/GaN	1.0/1.5	9-40	3-18	40	PWM	Y	Y	100	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi8231DDCG-AQ	IGBT/MOSFET/SiC/GaN	1.0/1.5	13.5-40	3-18	40	PWM	Y	Y	100	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi8232BDCG-AQ	IGBT/MOSFET/SiC/GaN	1.0/1.5	9-40	3-18	40	VIA/VIB	-	-	100	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi8232DDCG-AQ	IGBT/MOSFET/SiC/GaN	1.0/1.5	13.5-40	3-18	40	VIA/VIB	-	-	100	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi8233BDCG-AQ	IGBT/MOSFET/SiC/GaN	4.0/7.0	9-40	3-18	40	VIA/VIB	Y	Y	100	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi8233DDCG-AQ	IGBT/MOSFET/SiC/GaN	4.0/7.0	13.5-40	3-18	40	VIA/VIB	Y	Y	100	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi8234BDCG-AQ	IGBT/MOSFET/SiC/GaN	4.0/7.0	9-40	3-18	40	PWM	Y	Y	100	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi8234DDCG-AQ	IGBT/MOSFET/SiC/GaN	4.0/7.0	13.5-40	3-18	40	PWM	Y	Y	100	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi8235BDCG-AQ	IGBT/MOSFET/SiC/GaN	4.0/7.0	9-40	3-18	40	VIA/VIB	-	-	100	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi8235DDCG-AQ	IGBT/MOSFET/SiC/GaN	4.0/7.0	13.5-40	3-18	40	VIA/VIB	-	-	100	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi8233HBDCP-AQ	IGBT/MOSFET/SiC/GaN	4.0/7.0	9-40	3-18	40	VIA/VIB	Y	Y	100	5000	–40 ~ 125	SOP14W	Reel/1500
SLMi8233HDDCP-AQ	IGBT/MOSFET/SiC/GaN	4.0/7.0	13.5-40	3-18	40	VIA/VIB	Y	Y	100	5000	–40 ~ 125	SOP14W	Reel/1500
SLMi8234HBDCP-AQ	IGBT/MOSFET/SiC/GaN	4.0/7.0	9-40	3-18	40	PWM	Y	Y	100	5000	–40 ~ 125	SOP14W	Reel/1500
SLMi8234HDDCP-AQ	IGBT/MOSFET/SiC/GaN	4.0/7.0	13.5-40	3-18	40	PWM	Y	Y	100	5000	–40 ~ 125	SOP14W	Reel/1500
SLMi8235HBDCP-AQ	IGBT/MOSFET/SiC/GaN	4.0/7.0	9-40	3-18	40	VIA/VIB	-	-	100	5000	–40 ~ 125	SOP14W	Reel/1500
SLMi8235HDDCP-AQ	IGBT/MOSFET/SiC/GaN	4.0/7.0	13.5-40	3-18	40	VIA/VIB	-	-	100	5000	–40 ~ 125	SOP14W	Reel/1500
SLMi8233HBDCG-AQ	IGBT/MOSFET/SiC/GaN	4.0/7.0	9-40	3-18	40	VIA/VIB	Y	Y	100	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi8233HDDCG-AQ	IGBT/MOSFET/SiC/GaN	4.0/7.0	13.5-40	3-18	40	VIA/VIB	Y	Y	100	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi8234HBDCG-AQ	IGBT/MOSFET/SiC/GaN	4.0/7.0	9-40	3-18	40	PWM	Y	Y	100	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi8234HDDCG-AQ	IGBT/MOSFET/SiC/GaN	4.0/7.0	13.5-40	3-18	40	PWM	Y	Y	100	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi8235HBDCG-AQ	IGBT/MOSFET/SiC/GaN	4.0/7.0	9-40	3-18	40	VIA/VIB	-	-	100	5000	–40 ~ 125	SOP16W	Reel/1500
SLMi8235HDDCG-AQ	IGBT/MOSFET/SiC/GaN	4.0/7.0	13.5-40	3-18	40	VIA/VIB	-	-	100	5000	–40 ~ 125	SOP16W	Reel/1500
